Compare AI orchestrators: LangGraph vs Strands vs OpenAI Swarm

python scripts/download_papers.py

# From orchestration/scripts/download_papers.py:164-189
topics = {
    "1": {
        "name": "Chain-of-thought prompting in LLMs",
        "query": "cat:cs.CL AND (chain-of-thought OR CoT) AND reasoning",
        "years": 2
    },
    "2": {
        "name": "Retrieval-augmented generation (RAG)",
        "query": "cat:cs.CL AND (retrieval-augmented OR RAG) AND generation",
        "years": 2
    },
    "3": {
        "name": "Emergent communication in multi-agent RL",
        "query": "cat:cs.MA AND (emergent communication OR language emergence)",
        "years": 5
    },
    "4": {
        "name": "Few-shot prompting for code generation",
        "query": "cat:cs.SE AND few-shot AND code generation",
        "years": 2
    },
    "5": {
        "name": "Vision-language model grounding",
        "query": "cat:cs.CV AND vision-language AND grounding",
        "years": 2
    }
}

[
  {
    "id": "2409.02645v2",
    "title": "Emergent Language: A Survey and Taxonomy",
    "authors": "Jannik Peters, Constantin Waubert de Puiseau, ...",
    "published": "2024-09-04",
    "category": "cs.MA",
    "abstract": "The field of emergent language represents...",
    "introduction": "Language emergence has been explored...",
    "conclusion": "This paper provides a comprehensive review..."
  }
]

# .env file
LD_SDK_KEY=sdk-xxxxx       # Get from LaunchDarkly project settings
LD_API_KEY=api-xxxxx       # Create at Account settings → Authorization
LAUNCHDARKLY_PROJECT_KEY=orchestrator-agents

# Model API keys
ANTHROPIC_API_KEY=sk-ant-xxxxx
OPENAI_API_KEY=sk-xxxxx

python -m venv .venv
source .venv/bin/activate

# LaunchDarkly SDKs - see [Python SDK docs](/sdk/server-side/python)
pip install ldai ldclient python-dotenv arxiv PyPDF2 requests

# Orchestration frameworks
pip install strands-sdk langgraph swarm

# From the orchestration repo root
cd ai-orchestrators

# Run bootstrap with the research gap manifest
python scripts/launchdarkly/bootstrap.py

# You'll see:
╔═══════════════════════════════════════════════════════╗
║  AI Agent Orchestrator - LaunchDarkly Bootstrap       ║
╚═══════════════════════════════════════════════════════╝

Available manifests:
  1. Research Gap Analysis (research_gap_manifest.yaml)

Select manifest or press Enter for default: [Enter]

📦 Project: orchestrator-agents
🌍 Environment: production

🛠️  Creating paper analysis tools...
    ✓ Tool 'extract_key_sections' created
    ✓ Tool 'fetch_paper_section' created
    ✓ Tool 'handoff_to_agent' created
    ...

🤖 Creating AI agent configs...
    ✓ config 'approach-analyzer' created
    ✓ config 'contradiction-detector' created
    ✓ config 'gap-synthesizer' created

✨ Bootstrap complete!

# Example from approach-analyzer agent
variations:
  - key: "analyzer-claude"
    name: "Approach Analyzer Claude"
    modelConfig:
      provider: "anthropic"
      modelId: "claude-sonnet-4-5"
    tools: ["handoff_to_agent", "cluster_approaches"]
    instructions: |
      [Agent instructions here]

  - key: "analyzer-openai"
    name: "Approach Analyzer OpenAI"
    modelConfig:
      provider: "openai"
      modelId: "gpt-5"
    tools: ["handoff_to_agent", "cluster_approaches"]
    instructions: |
      [Same instructions, different model]

targeting:
  rules:
    - variation: "analyzer-openai"
      clauses:
        - attribute: "orchestrator"
          op: "in"
          values: ["openai_swarm", "openai-swarm"]
  defaultVariation: "analyzer-claude"

from shared.launchdarkly import (
    init_launchdarkly_clients,
    fetch_agent_configs_from_api,
    create_context,
    build_agent_requests
)

# Initialize LaunchDarkly clients
ld_client, ai_client = init_launchdarkly_clients()

# Fetch agent list from LaunchDarkly API (not hardcoded!)
items = fetch_agent_configs_from_api()
print(f"Found {len(items)} config(s) in LaunchDarkly")

# Create execution context
execution_id = f"langgraph-{datetime.now().strftime('%Y%m%d_%H%M%S')}"
context = create_context(execution_id, orchestrator="langgraph")

# Build requests for all agents
agent_requests, agent_metadata = build_agent_requests(items)

# Fetch all configs in one call
configs = ai_client.agent_configs(agent_requests, context)

# Process agents with configured variations
enabled_agents = []
for item in items:
    config = configs.get(item["key"])
    if config and config.enabled:
        enabled_agents.append({
            "key": item["key"],
            "name": item["name"],
            "config": config,
            "model": config.model.name if config.model else "claude-sonnet-4-5"
        })

print(f"✓ Found {len(enabled_agents)} configured agent configs")

# From orchestrators/strands/run_gap_analysis.py:418-424
if agent_key in per_agent_metrics:
    usage = node_result.accumulated_usage or {}
    input_tokens, output_tokens = extract_usage_tokens(usage)
    total_tokens = input_tokens + output_tokens

# From orchestrators/langgraph/run_gap_analysis.py:442-446
if hasattr(msg, "usage_metadata") and msg.usage_metadata:
    usage_data = msg.usage_metadata
    input_tokens = usage_data.get("input_tokens", 0) or usage_data.get("prompt_tokens", 0)
    output_tokens = usage_data.get("output_tokens", 0) or usage_data.get("completion_tokens", 0)
    has_usage = True

# From orchestrators/openai_swarm/run_gap_analysis.py:369-387
original_get_chat_completion = client.get_chat_completion

def tracked_get_chat_completion(agent, history, context_variables, model_override, stream, debug):
    start_call = time.time()
    completion = original_get_chat_completion(
        agent=agent,
        history=history,
        context_variables=context_variables,
        model_override=model_override,
        stream=stream,
        debug=debug,
    )
    duration = time.time() - start_call
    agent_key = key_by_name.get(agent.name, agent.name)
    usage = getattr(completion, "usage", None)
    if usage:
        input_tokens = int(getattr(usage, "prompt_tokens", 0))
        output_tokens = int(getattr(usage, "completion_tokens", 0))
        total_tokens = int(getattr(usage, "total_tokens", input_tokens + output_tokens))

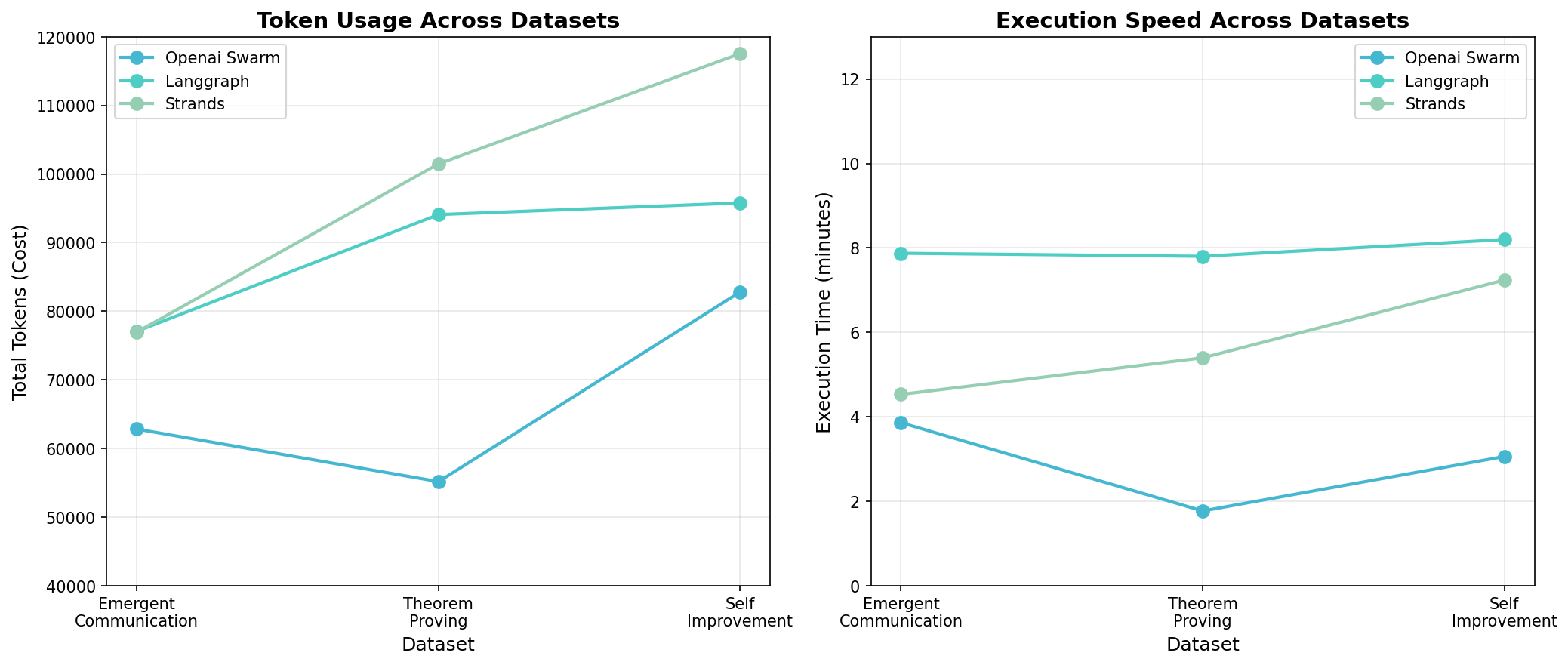

# Run all orchestrators 5 times each
./scripts/run_swarm_benchmark.sh sequential 5

# Analyze the results
python scripts/analyze_benchmark_results.py
